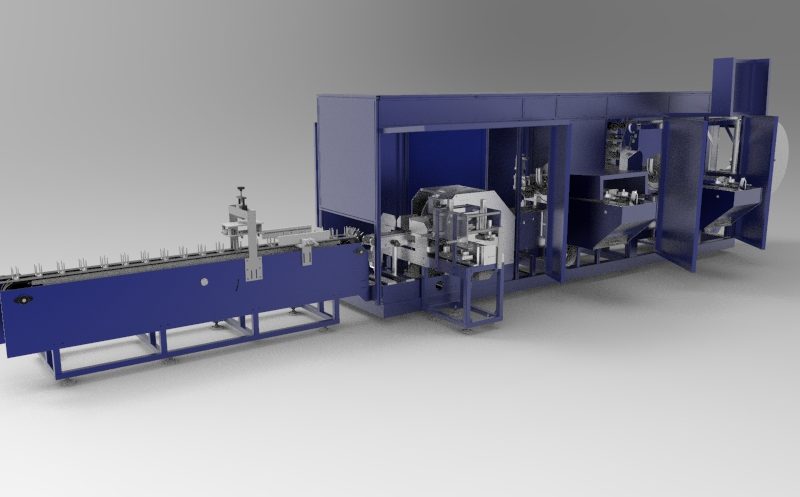

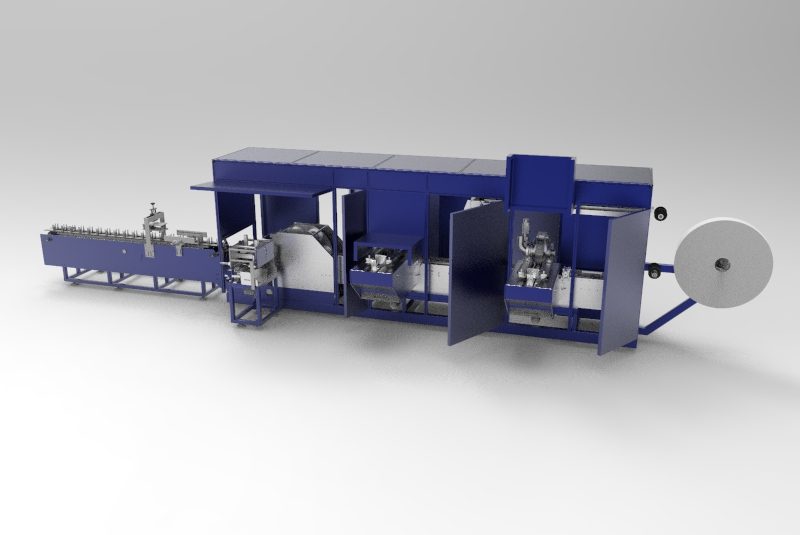

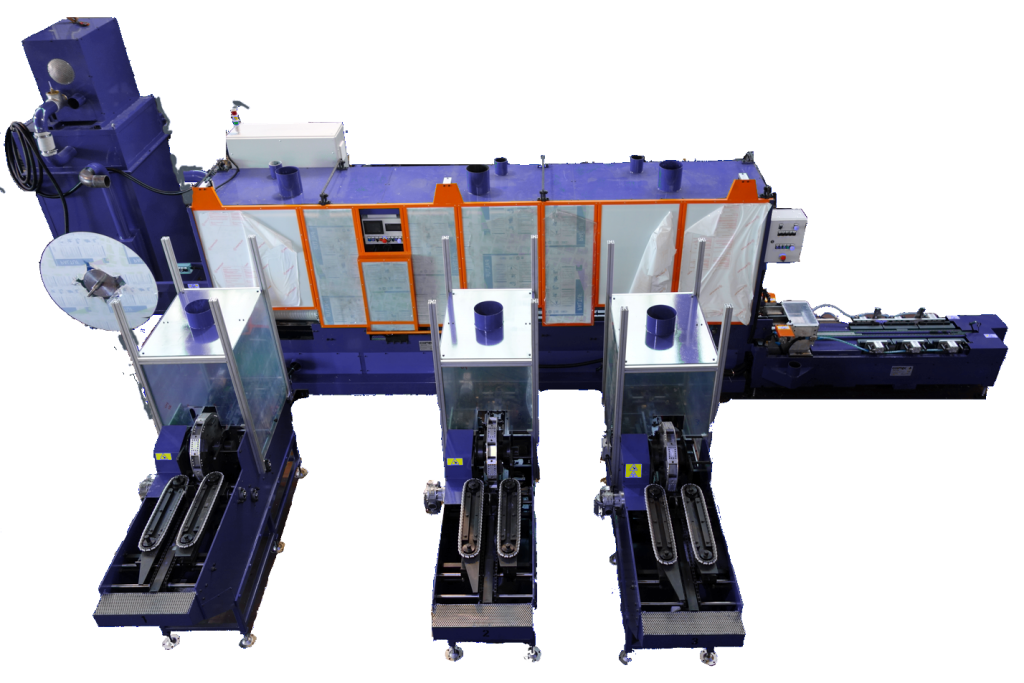

Enveloping and stacking machine

Custom Industrial Machines

The COSMEC GROUP enveloping/stacking unit is designed and manufactured for operating in line with C.O.S. equipment and undertakes, in automatic cycle, the following operations:

  • cutting of the separators in any desired length with one bending line in the middle of the same piece of separator in order to facilitate the folding operation
  • continuous simultaneous step of the separator and the plate
  • welding of the separators by pressure
  • stacking of the enveloped and no-enveloped plates
  • accumulation of the combined plates in vertical position

MODE OF OPERATION

The pack of plates, stored in vertical position in the machine, are
automatically separated and fed, by a vacuum system, over the belt
conveyor.

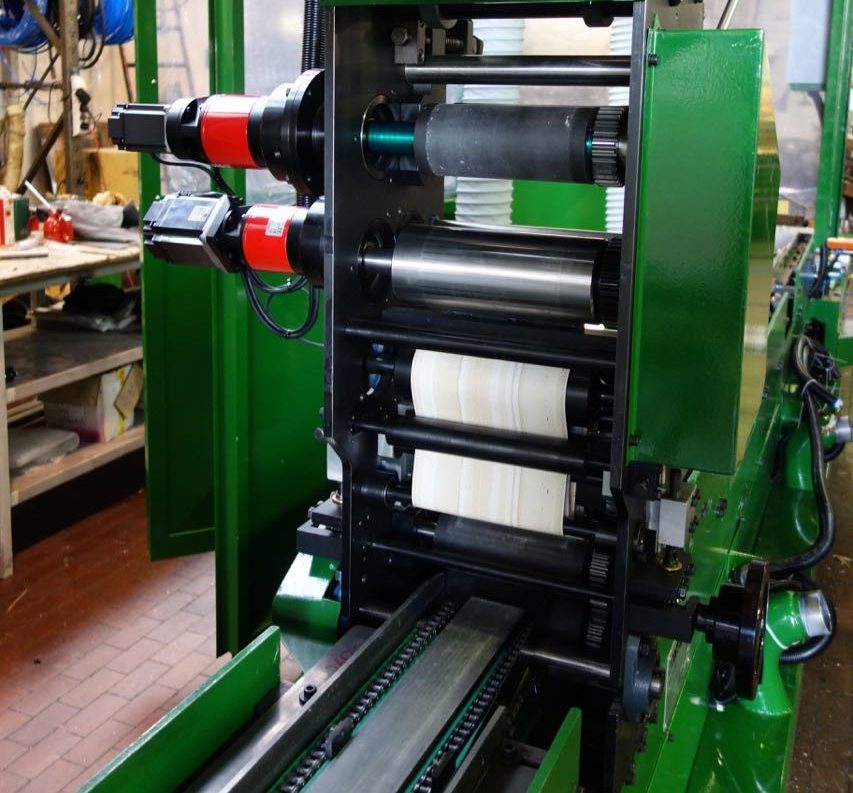

From a roll the separator is fed into the cutting system, which is also able to bend it in the middle. The adjustment of the desired length is quick and easy by means of variation of cutter’s position.

After the enveloping operation the second feeder provides the no-enveloped plate (negative or positive according the selected program) over the enveloped one until of the selected number of

combined plates is reached.

An additional feeder, if it is necessary, feeds the odd plate over the formed group.

All stacking operations are controlled by a microprocessor where all programs can be stored.

One automatic mechanism transfers the groups from horizontal to vertical position and stores them.

TECHNICAL DATA

The speed is easy adjustable by means of moto-variator controlled by an inverter.

Type of plates: both positives or negatives. Formed or unformed ones

Plate dimensions:

                                        Height  from 100 up to 140 mm (lug excluded)

                                        Width          from 108 up to 150 mm

                                        Thickness       from 1,0 up to 3 mm

Plate transfer system: by chain conveyor the lowest part, by pusher the

highest part

The machine is equipped with one roll support diam. 250mm

Welding system: by means of pressure

Service requirements:   Electricity V=220/380 3Ph 50Hz

                                        Installed power 12 KW

                                        Compressed air: 6 bar

Dust protection: the machine is largely enclosed and any chips are vacuumed away from the plate surface. Any existing suction and filter can

be connected.

NIK 90/I

Machine capacity: 90 enveloped plates per minute.

Overall dimensions:                 Machine Length   3200 mm

                                                     Width 1600 mm

                                                     Height 2000 mm

Weight:                                       Uncrated Kg. 1250

                                                     Crated      Kg. 1430

NIK 130/I

Machine capacity: 130 enveloped plates per minute.

Overall dimensions:                   Machine Length   =5.850 mm

                                                       (Without glass-mat device )

                                                       Conveyor Length            2.500 mm

                                                       Machine Width     =        1850 mm

                                                       (Without lug brushing station )

                                                       Machine Height    =        2150 mm

Weight:                                         Uncrated Kg. 1410

                                                       Crated    Kg. 1490

NIK 200/I

Machine capacity: 200 enveloped plates per minute.

Overall dimensions:                   Machine Length   =8.850 mm

                                                       (Without glass-mat device )

                                                       Conveyor Length            2.500 mm

                                                       Machine Width     =        2.150 mm

                                                       (Without lug brushing station )

                                                       Machine Height    =        2150 mm

Weight:                                         Uncrated Kg. 2410

                                                       Crated    Kg. 2590
